VHF/UHF Antenna for ATSC, DVB-T/T2, ISDB-T & DMB-T/H

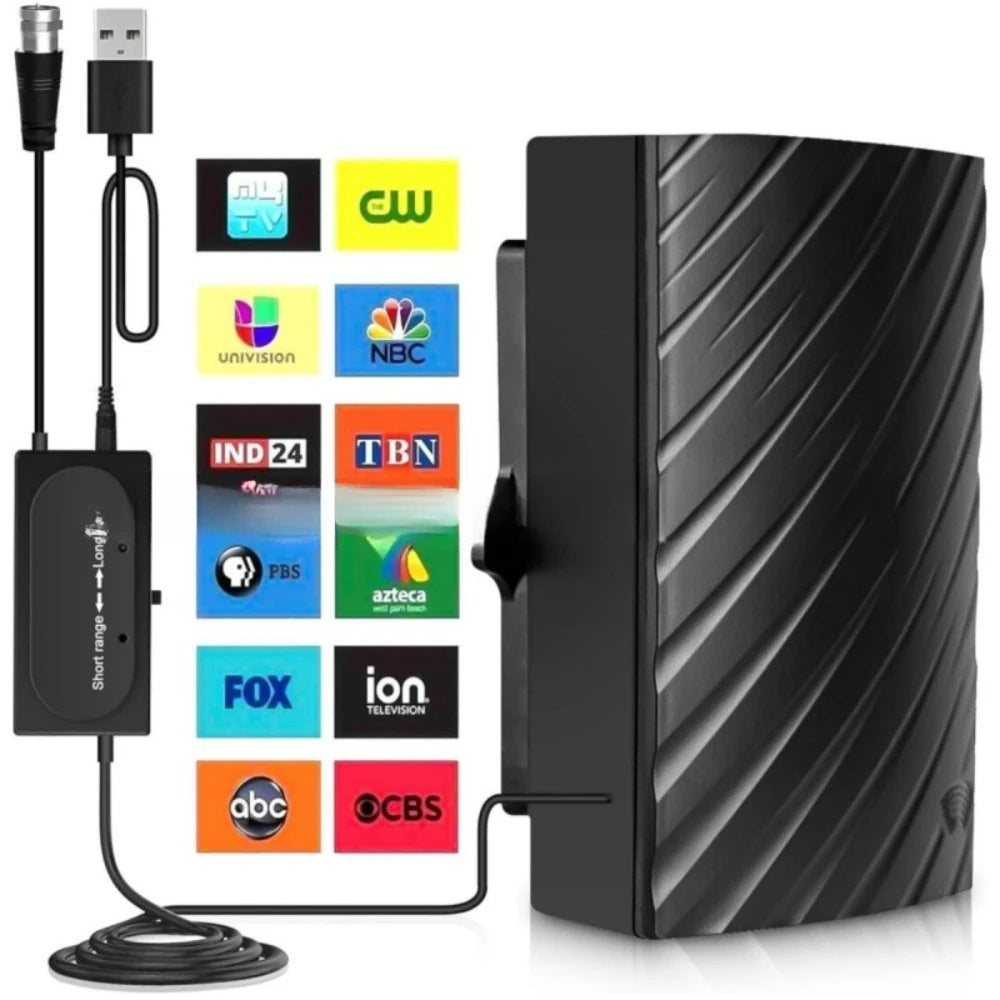

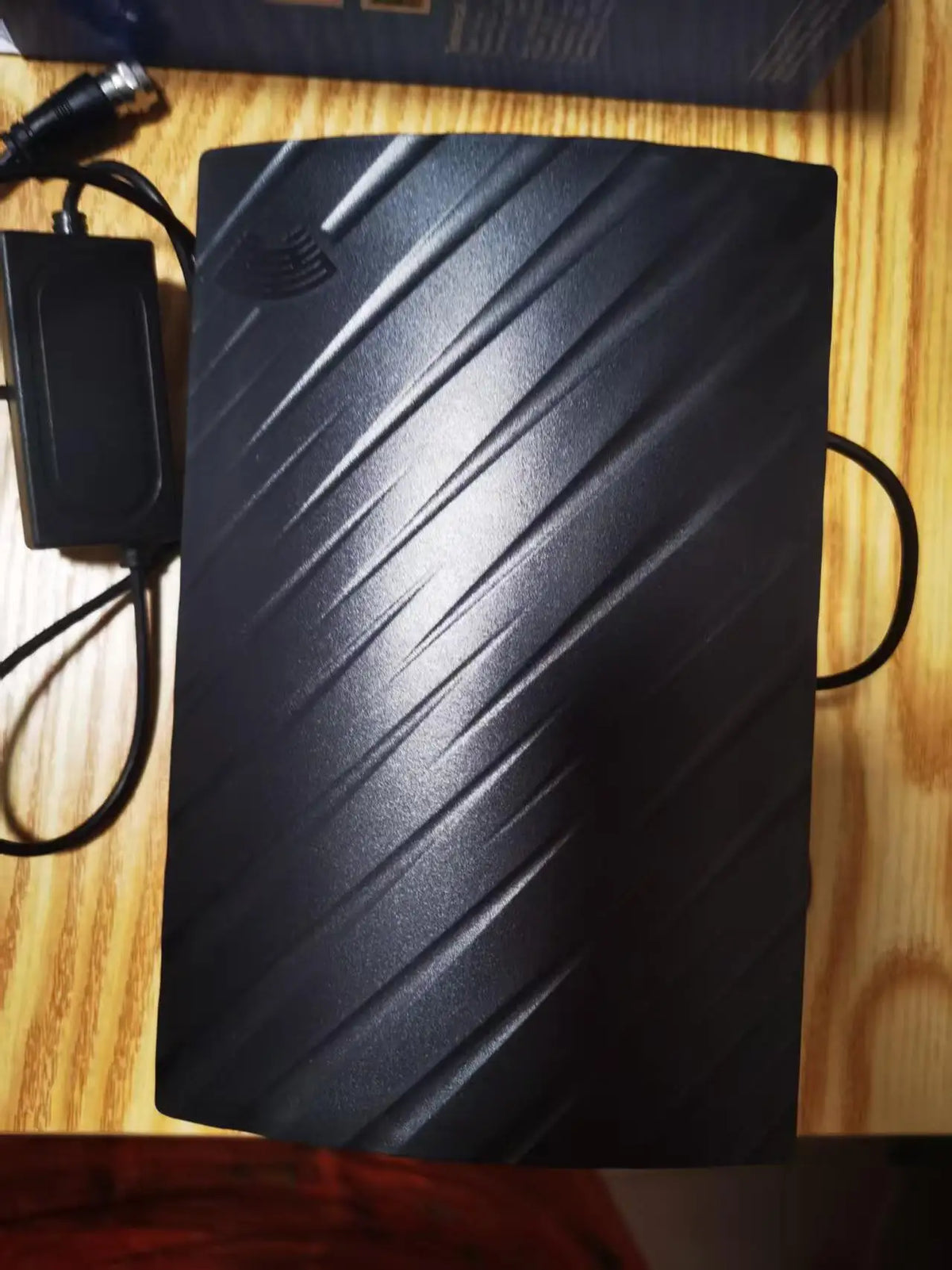

The JSAMAZING HDTV-SM09 is a digital television antenna designed for compatible terrestrial TV signals, supporting multiple broadcast standards with a built-in amplifier, USB power, and flexible indoor or outdoor installation.

Key Features

• Supports ATSC, DVB-T/T2, ISDB-T, and DMB-T/H digital TV standards
• Compatible with VHF and UHF frequency bands
• 37 dB amplified signal gain
• Supports compatible 4K and 1080p digital broadcasts
• USB 5V powered amplifier
• 5 m antenna cable
• F-type connector with TV adapter included
• Vertical polarization
• Suitable for indoor and outdoor installation
• Can be installed vertically or with adhesive mounting
• Designed for compatible home and vehicle digital TV reception
• Also supports compatible DAB/FM radio signals

Specifications

Brand: JSAMAZING
Model: HDTV-SM09
Type: Amplified Digital TV Antenna
Supported Standards: ATSC / DVB-T / DVB-T2 / ISDB-T / DMB-T/H
Frequency Range: VHF 170–240 MHz / UHF 470–860 MHz
Gain: 37 dB
Power Input: USB 5V
Cable Length: Approx. 5 m
Connector: F-Type
Adapter: F-to-TV Adapter Included
Polarization: Vertical
Installation: Vertical / Adhesive

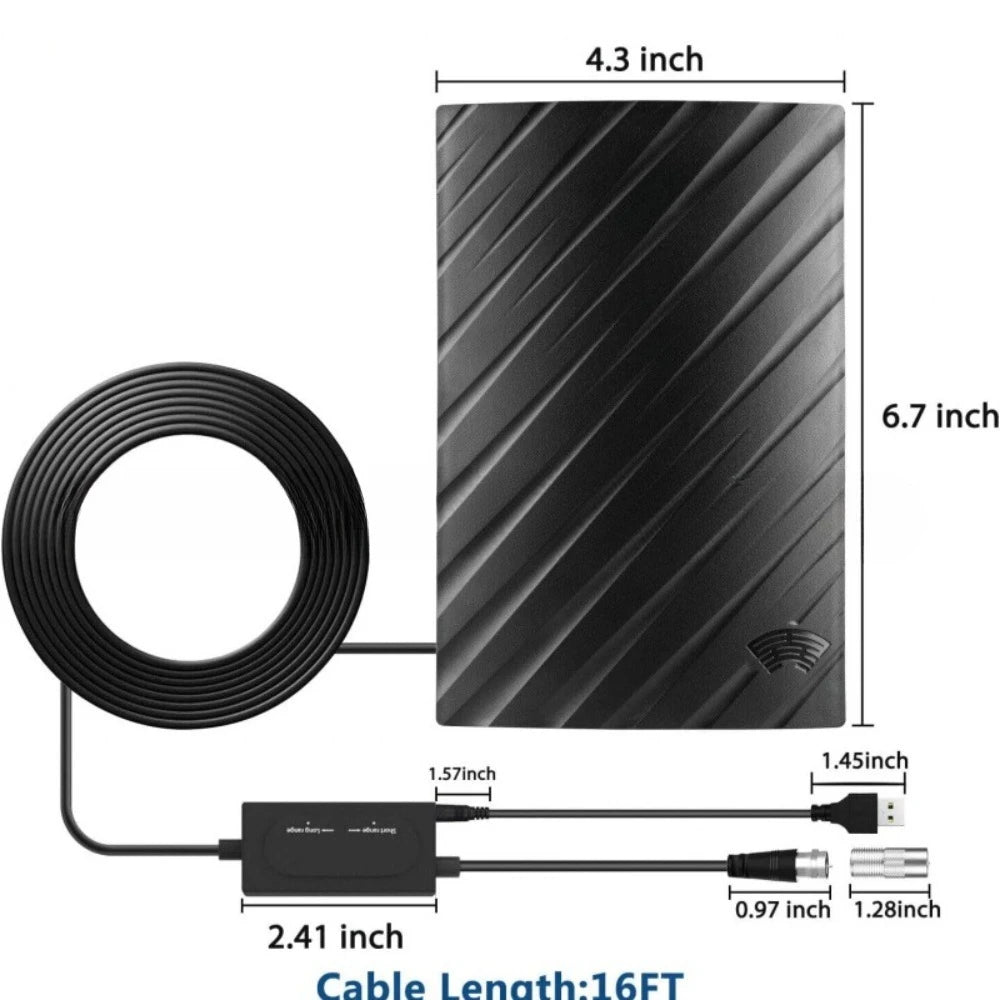

Net Weight: Approx. 350 g
Package Size: Approx. 180 × 60 × 70 mm
Certification: CE / FCC / RoHS
Package: Yes
Origin: Mainland China

Actual channel availability and reception quality depend on your region, local broadcast standard, distance from transmitters, terrain, buildings, interference, and antenna placement. 4K/1080p support depends on the received broadcast signal and compatible TV equipment.
